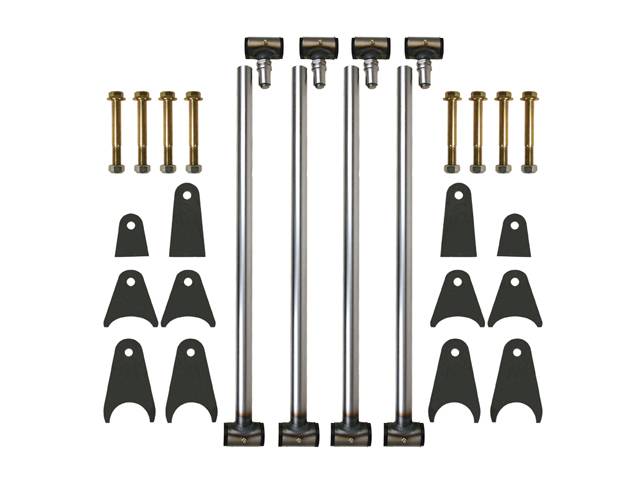

Universal Triangulated 4-Link Kit 1.25" OD

High Quality Universal Triangulated 4-Link Kit with 30" long 4-link tubes that allow you to cut them down to your preferred length. Polyurethane bushings and zerk fittings keep things properly lubed and squeak free. Threaded studs and 4-link tubes are TIG welded for maximum strength. All mounting tabs are CNC cut from 1/4" plate. CNC machined threaded bungs fit perfectly into the 4-link tubes. Zinc plated, Grade 8 mounting hardware included.

Tube length 30"
Tube Diameter 1.25"
Upper Bar Bushing Width is 2.5" on both ends.
Lower Bar Bushing Width: 3" non adjustable side, 2.75" on adjustable side.
