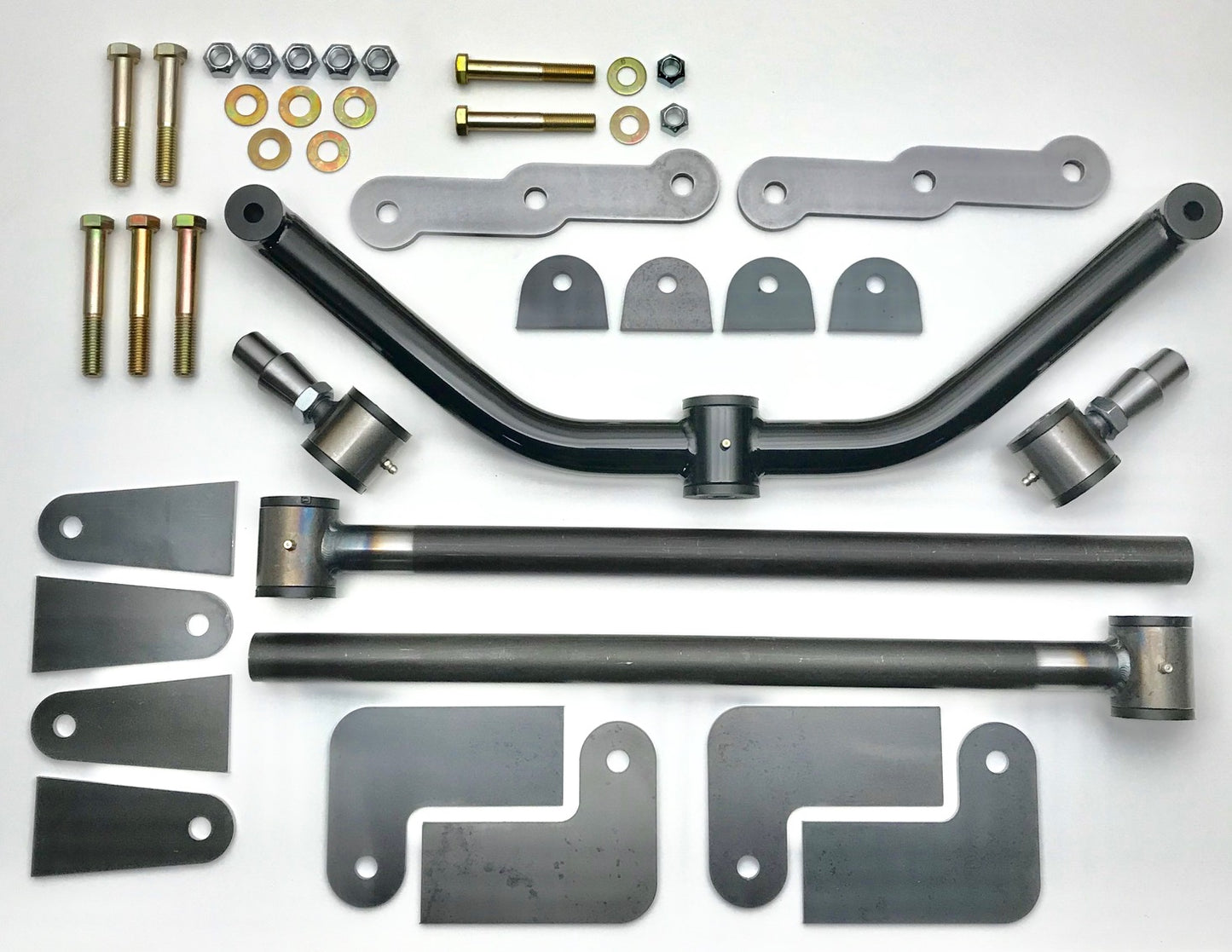

Tubular Watts Link w/ Poly Bushings

Our poly bushing watts kit is perfect for setups using a coil over static suspension. If you are running air ride we highly suggest using our heim joint watts kit because of the extra non-binding travel the heims provide.

Specs:
1.5" OD X .188" Wall DOM is used for the main structure body.
Polyurethane bushings on all pivot ends w/ grease zerks.
1.25" OD DOM tubing is used for the cross bars.
Cross bars are adjustable. Uses 3/4" threaded bung.

1/2 Ton Axle has a 24" main body width (center of bolt hole to center of bolt hole).
Distance from rear axle tube mounts to center pivot bolt is 4.75".

3/4 - 1 Ton Axle has a 28.5" main body width (center of bolt hole to center of bolt hole).
Distance from rear axle tube mounts to center pivot bolt is 5.5"
