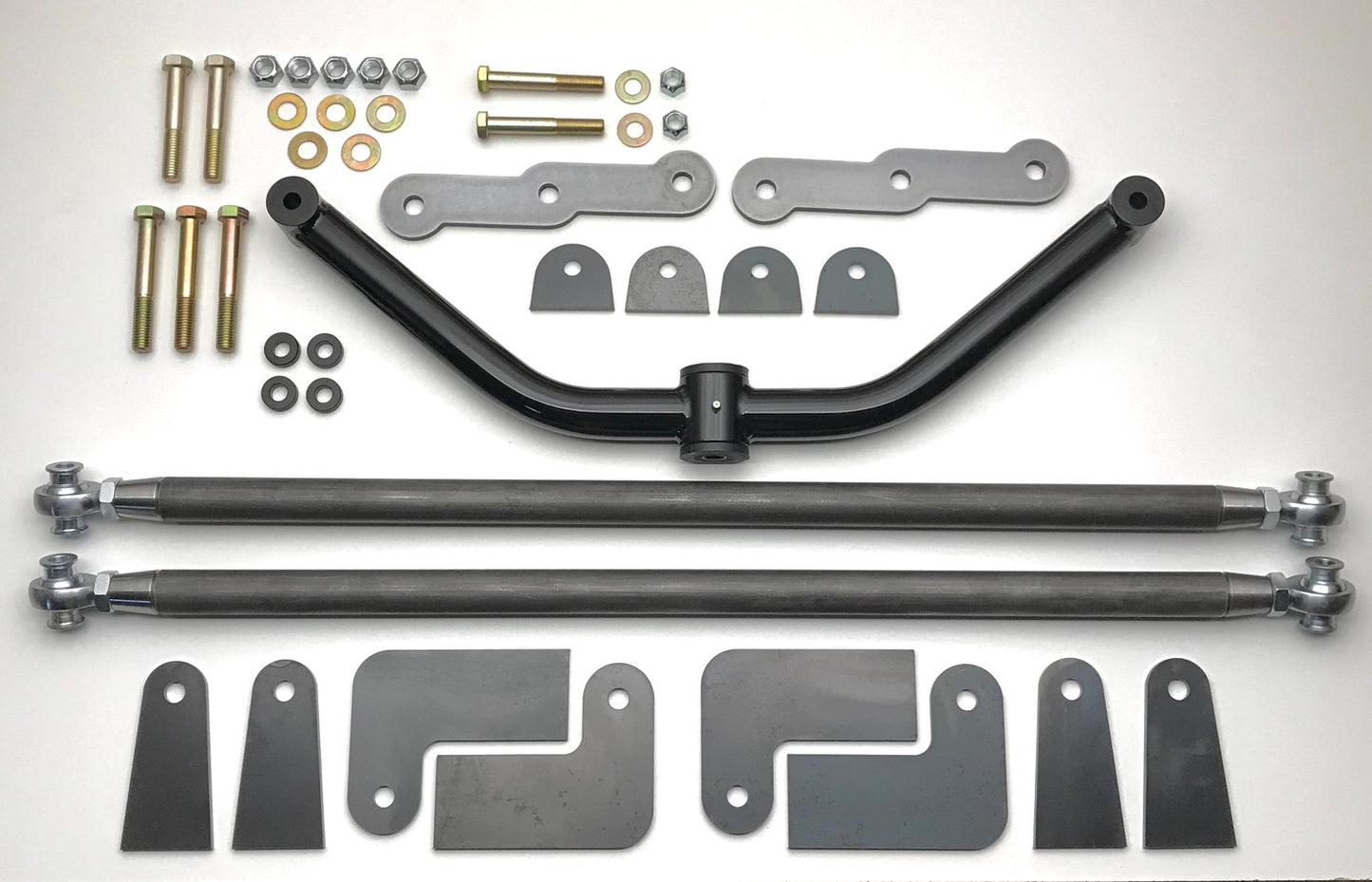

Tubular Watts Link w/ Heim Joints

1.5" OD X .188" Wall DOM is used for the main structure body.
Polyurethane bushings on center pivot w/ grease zerk.
1.25" OD DOM tubing is used for the cross bars.
Cross bars are adjustable. Uses 3/4" LH & RH threaded bungs.
Super high quality chromoly teflon lined heim joints included.

1/2 Ton Axle has a 24" main body width (center of bolt hole to center of bolt hole).
Distance from rear axle tube mounts to center pivot bolt is 4.75".

3/4 - 1 Ton Axle has a 28.5" main body width (center of bolt hole to center of bolt hole).
Distance from rear axle tube mounts to center pivot bolt is 5.5"
