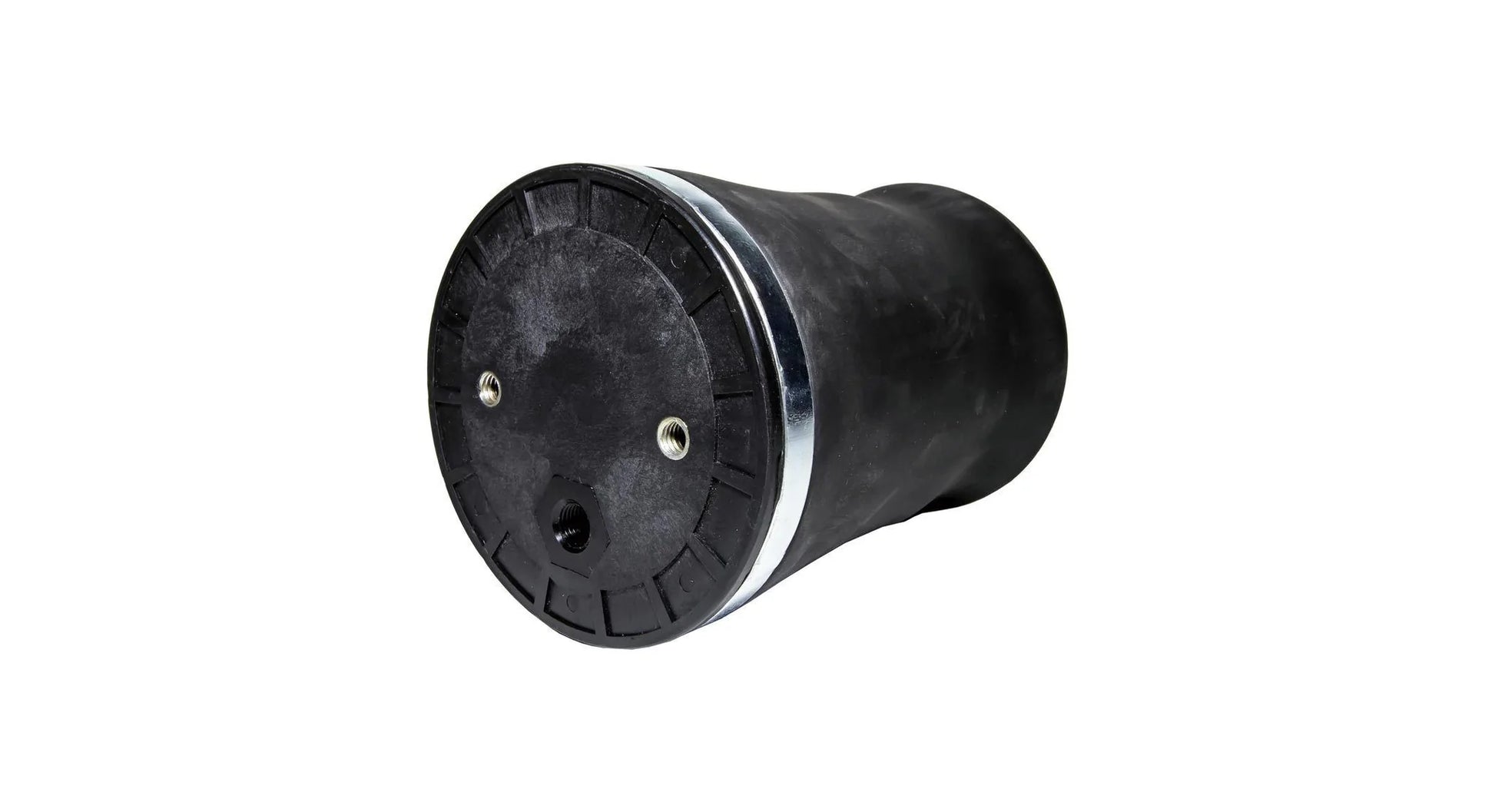

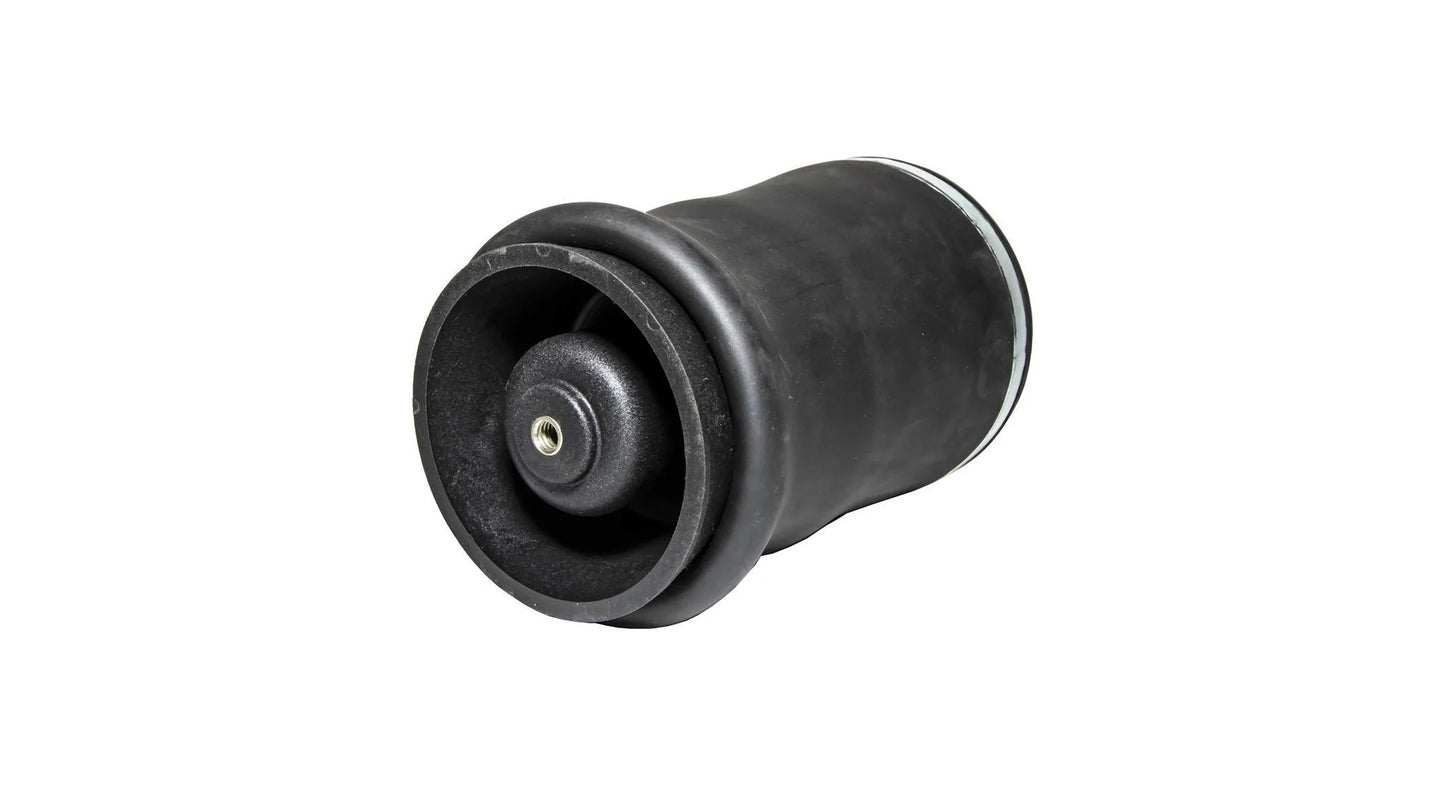

SLAM SPECIALTIES TS-6 SLEEVE AIR BAG

Slam Specialties has delivered their ingenuity and world-class quality again! The Slam Specialties TS-6 Sleeve Bag has a 6” diameter tapered sleeve-style airbag rated for up to 200 PSI. Bringing all of the little extras that make Slam Specialties bags stand out the Slam Specialties TS-6 features a composite upper plate with two 3/8" mounting holes and a single aluminum 1/4" NPT port, as well as a composite bottom piston with a 3/8" mounting hole. With their trademark top plate design and zinc-plated steel threaded inserts molded in, the Slam Specialties TS-6 sets a new standard for quality and durability. The Slam Specialties TS-6 has a maximum height of 10.25” and a minimum height of 4.5”, giving you a 5.75” stroke. Replaces F9000 style bags.

• "Up Not Out" Bag Design
• 6061-T6 CNC machined aluminum port
• Zinc plated steel threaded inserts Molded-in - not pressed in
• (2)  3/8-16 mounting holes on the upper plate
• (1) 3/8-16 mounting hole on the lower plate

• Ports: Single 1/4" NPT Port
• Max PSI: 400 PSI
• Collapse Force: 150 Pounds (68.04 Kg)
• Max Height: 10.25" (254 mm)
• Min. Height: 6.25" (73.66 mm)
• Stroke: 4" (231.14 mm)
• Max Diameter: 6" (152.4 mm)
