S10 Bolt-On Differential Bracket
S10 Bolt-On Differential Bracket

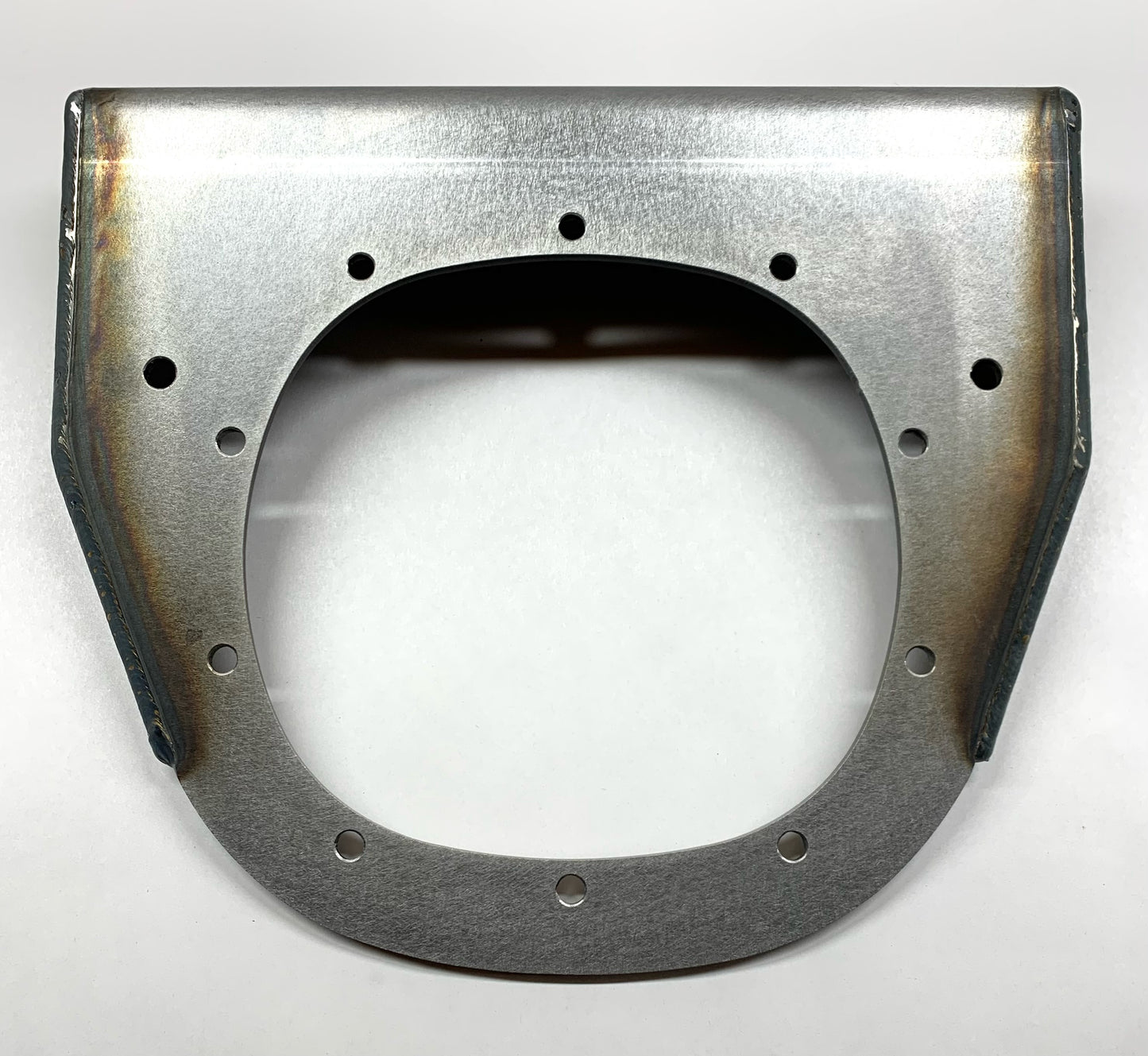

This piece is built from heavy duty 1/4" material. CNC cut and beautifully welded. This bracket bolts onto a S10 differential to provide a "out of bags way" mounting point for your upper link bars. As you can see we utilize all 10 bolts instead of only five. The spacer ring locates the bracket away from the "cover lip". The reason we use a ring instead of spacers is so that even pressure is applied to the cover. This will prevent warping of the cover and provides a leak free seal. Grade 8 mounting hardware and spacers included.

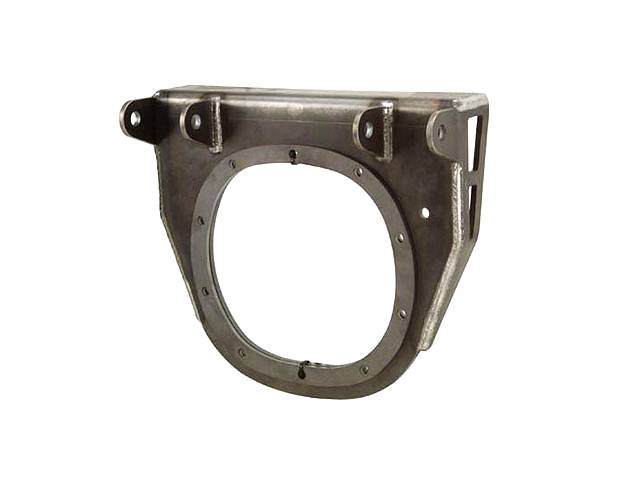

Choose between a bracket with mounting tabs that are spaced 2.75" and use a 9/16" bolt, or choose one with no tabs to fabricate your own design.
Manufactured by Thorbecke Brothers.

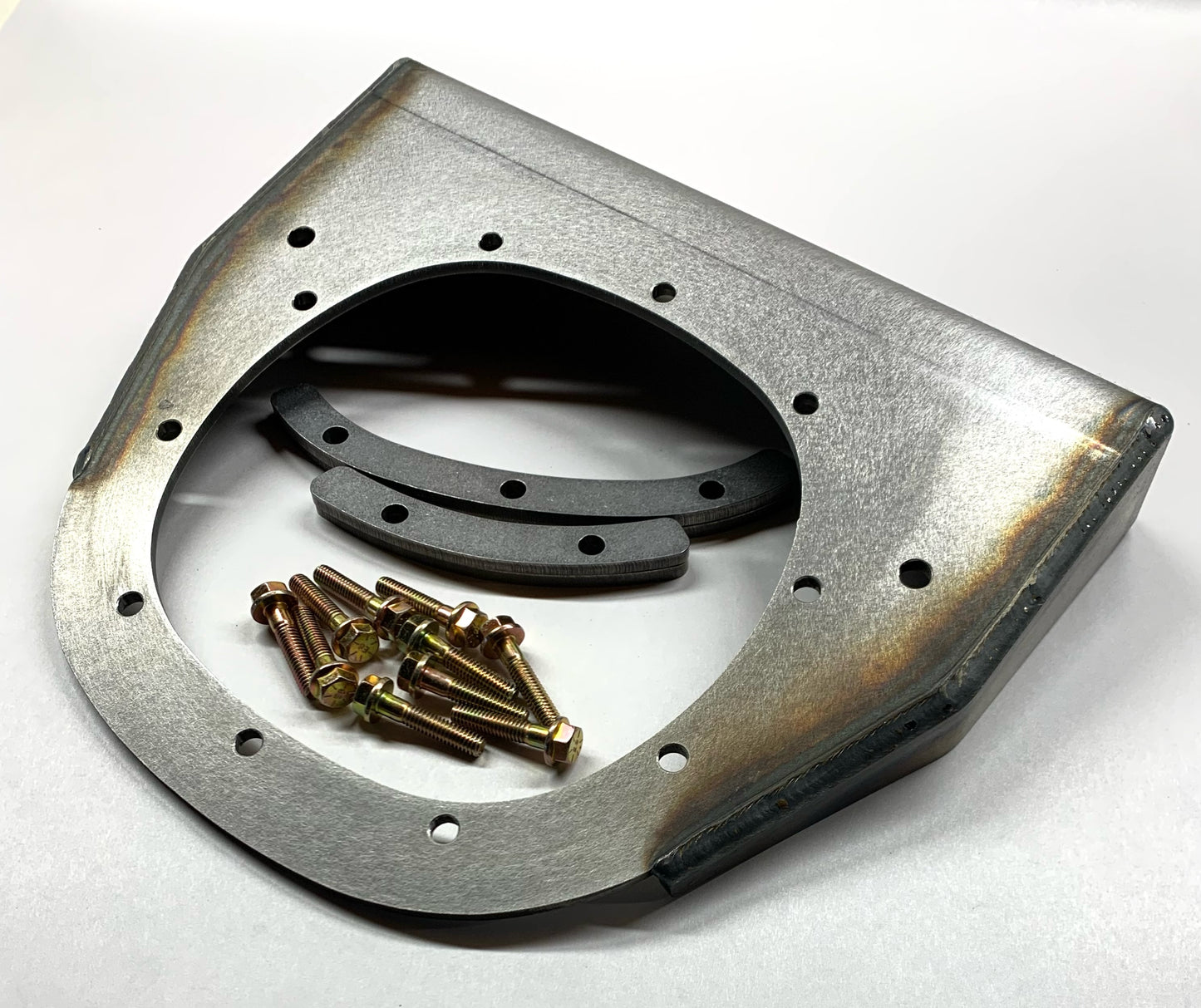

Differential Spacer included.
Grade 8 mounting hardware included.
