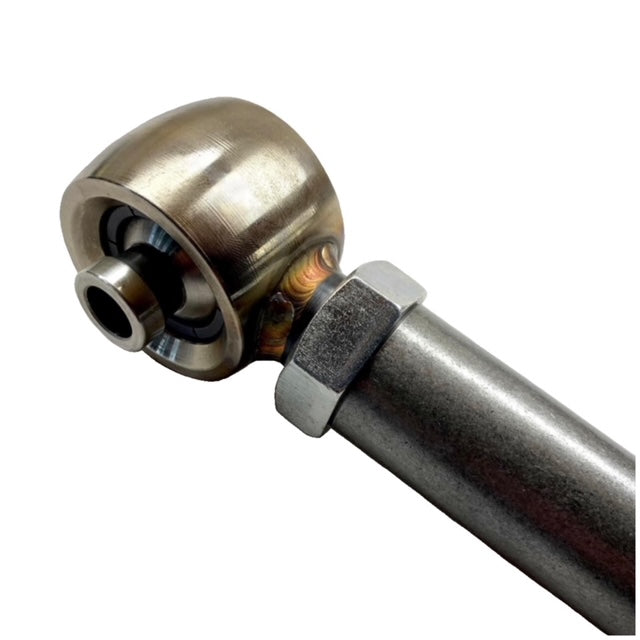

RideTech R-Joint Center Wishbone Section

Use this Ridetech R-joint center section when building your own custom wishbone.

R-Joint is a revolutionary spherical bearings design that provides low friction, full range articulation, long service life, lateral stability and quiet operation.

— Articulates in 3 planes 360 degree axial rotation and 50 degrees of total lateral rotation.
— Polished stainless ball and RTX10 composite cage provides consistent low friction movement.
— Special RTX10 composite cage needs NO lubrication.
— Self cleaning design…movement not affected by ANY water, grit, dirt, or debris.
— Spring loaded closure keeps mechanism tight and rattle free for LIFE!

Specs:
2-5/8" wide
9/16" bolt size
1-1/8" - 12 Threaded stud
1.5" OD 7/32" wall link tubing 10" long
