100 Percent Bolt-on S10 3-Link Kit w/ Poly Bushings

100 Percent Bolt-on S10 3-Link Kit w/ Poly Bushings

Regular price $899.99 USD
Regular price Sale price $899.99 USD
Sale Sold out
Differential Size

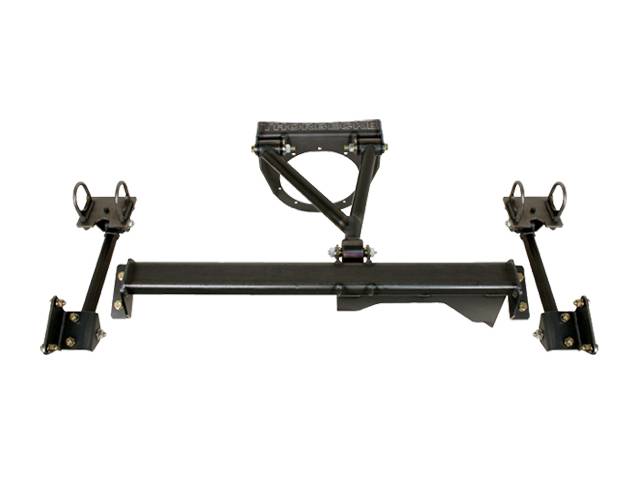

This 3-Link kit with fit all S10's, Sonomas, and the newer S10 style Isuzu Hombre. Sorry Blazer owners, it won't fit. This kit is real easy to install. The whole upper and lower link system is bolt on. The kit comes with a new gas tank x-member that raises your tank, and simply bolts in where the factory one used to be. The differential bracket uses all 10 bolts, not just 5 like with other kits. The wishbone and lower bars are built from beefy 1.5" diameter DOM seamless tubing. Mounting Tabs, Poly Bushings and all Grade 8 mounting hardware is included.

Note: Moving the front leaf spring hanger back 8.75" is required. New hardware is included to bolt them back on. New Front leaf spring perches can be purchased separately and are not included in the kit as pictured.

Note: Set lower link bars to 17.25" center to center.

Note: This item is built to order.
